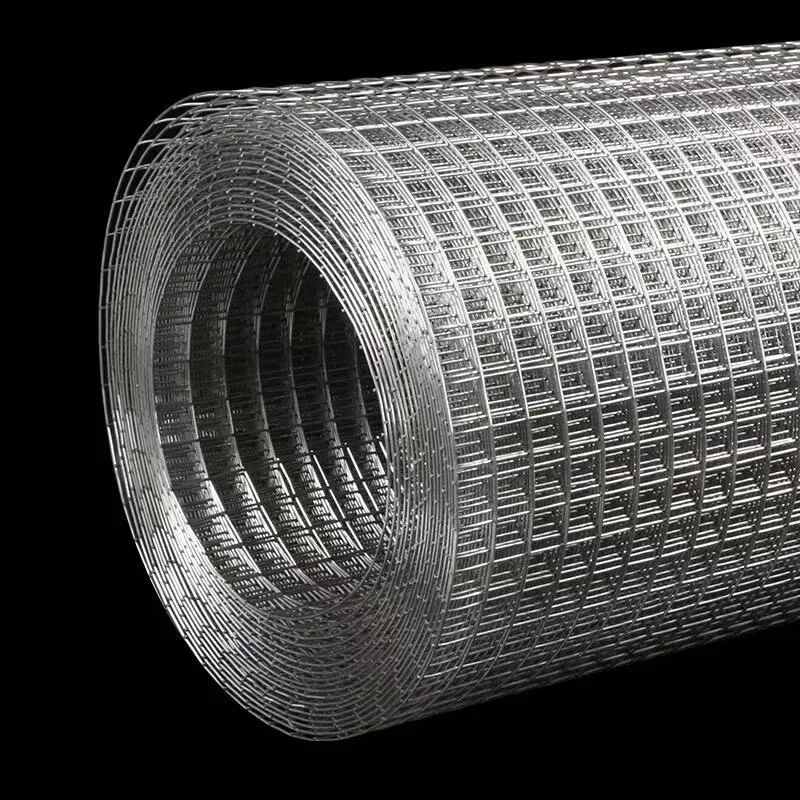

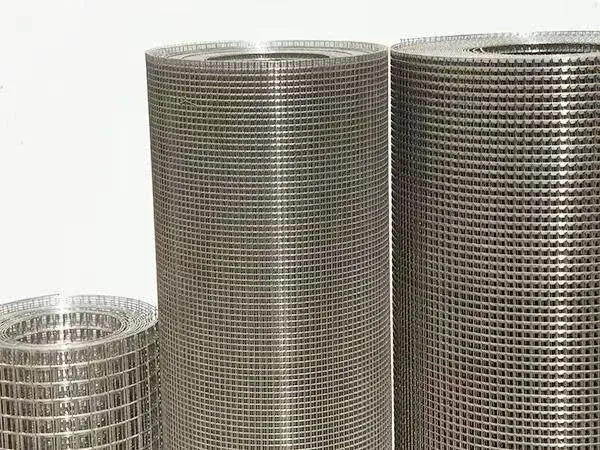

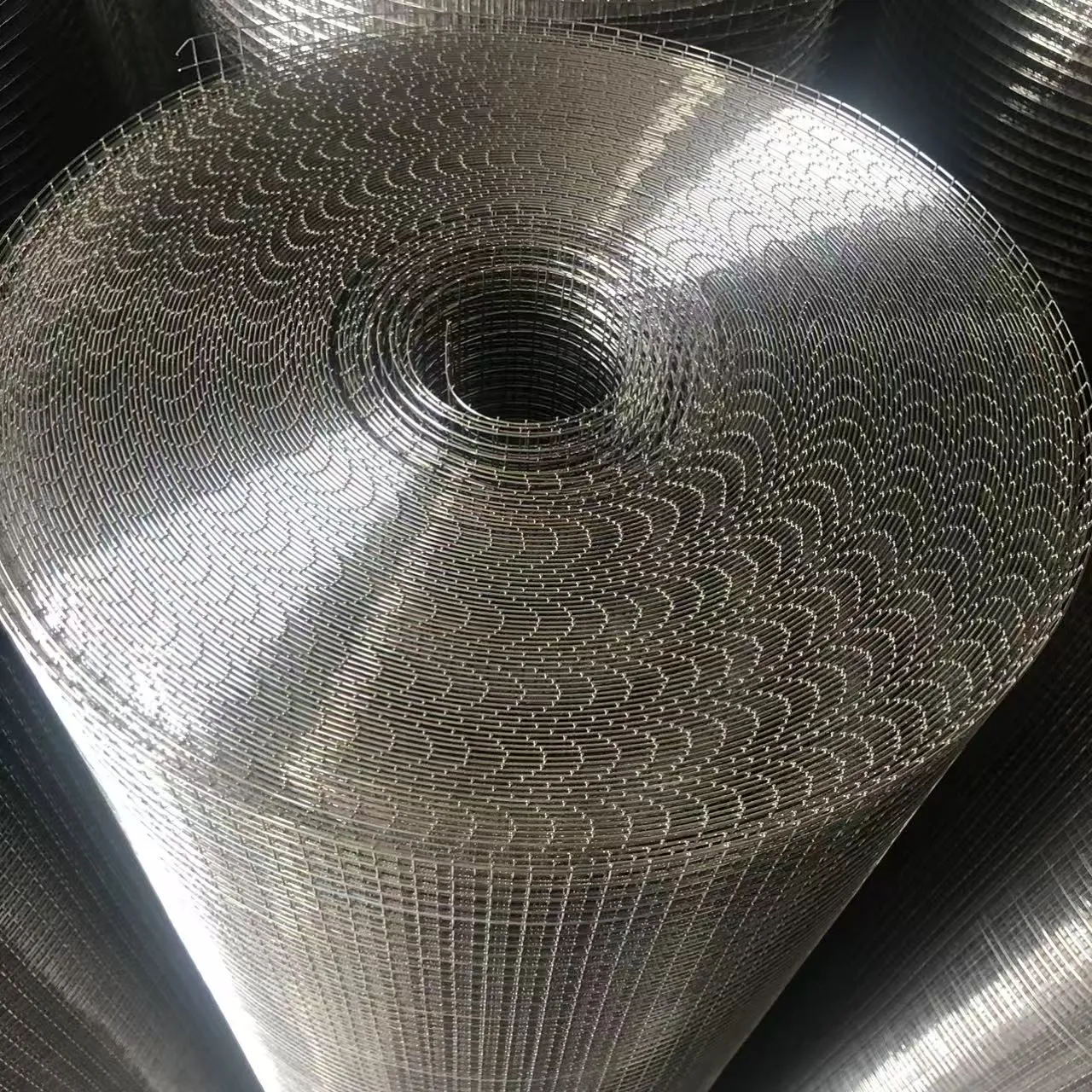

Stainless Steel Welded Wire Mesh

The stainless steel welded mesh with 0.25-1 inch square openings is also known as stainless steel hardware cloth. Similar to reinforced meshes,the horizontal wires(roll width) are secured to the vertical wires(roll length)by spot welding. These constant connection points give the screen a high level of stability. Welded wire mesh is used in a wide range of applications, such as plaster mesh, machine guards, animal fences, flower fences, window guards, access fences, and poultry cages, etc.

Send Us an Email Download PDF

Product Detail

Specification

Product Tags

Read More About welded stainless steel wire mesh

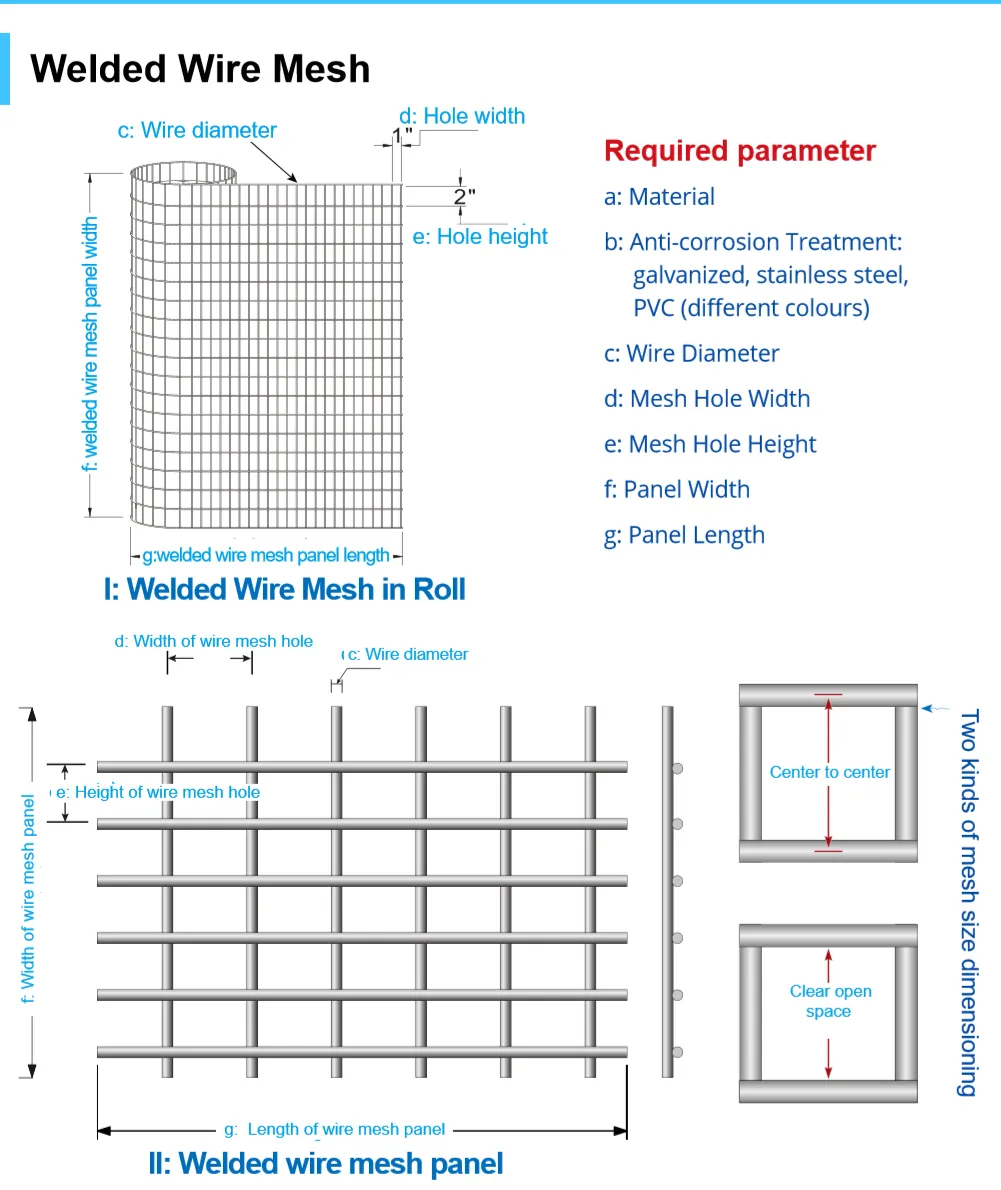

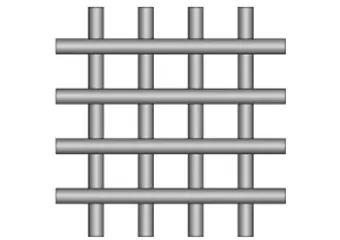

Explanation of Mesh Count Terminology:

Take woven wire mesh for examples:

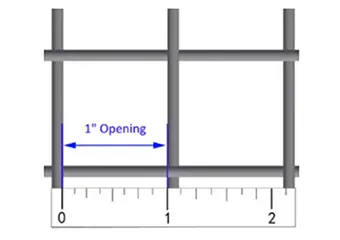

1" Opening = a 1" opening, measured from
inside wire edge to inside wire edge.

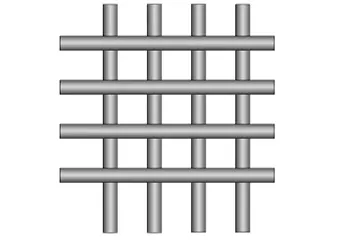

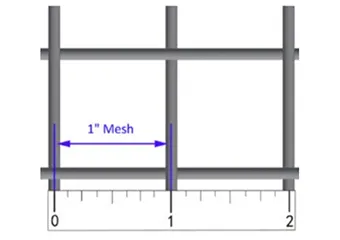

1" Mesh = a 1" measurement from
center to center of wire.

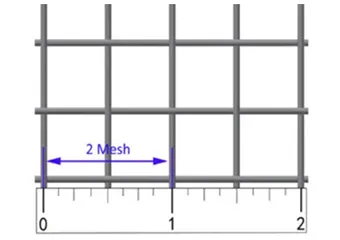

2 Mesh = a total of 2 equal openings
within a 1" measurement, from center to center of wire.

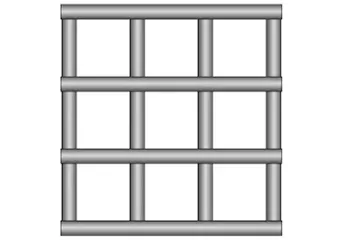

Treatment of welded wire mesh edge

A: Different extension length of
the wire at the cutting edge
B: Closed edge
C: The same extension length of
the wire at the cutting edge

Mesh Size		Wire Gauge Diameter
In MM	In Inch	BWG No.	MM
6.4mm	1/4Inch	BWG24-22	0.56mm-0.71mm
9.5mm	3/8Inch	BWG23-19	0.64mm-1.07mm
12.7mm	1/2Inch	BWG22-16	0.71mm-1.65mm
19.1mm	3/4Inch	BWG21-16	0.81mm-1.65mm
25.4x12.7mm	1x 1/2Inch	BWG21-16	0.81mm-1.65mm
25.4mm	1Inch	BWG21-14	0.81mm -2.11mm
38.1mm	1 1/2Inch	BWG19-14	1.07mm-2.11mm
25.4x50.8mm	1 x 2Inch	BWG17-14	1.47mm -2.11mm
50.8mm	2Inch	BWG16-12	1.65mm-2.77mm

Technical Note

1,Standard roll length: 30m;width: 0.5m to 2.1m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
