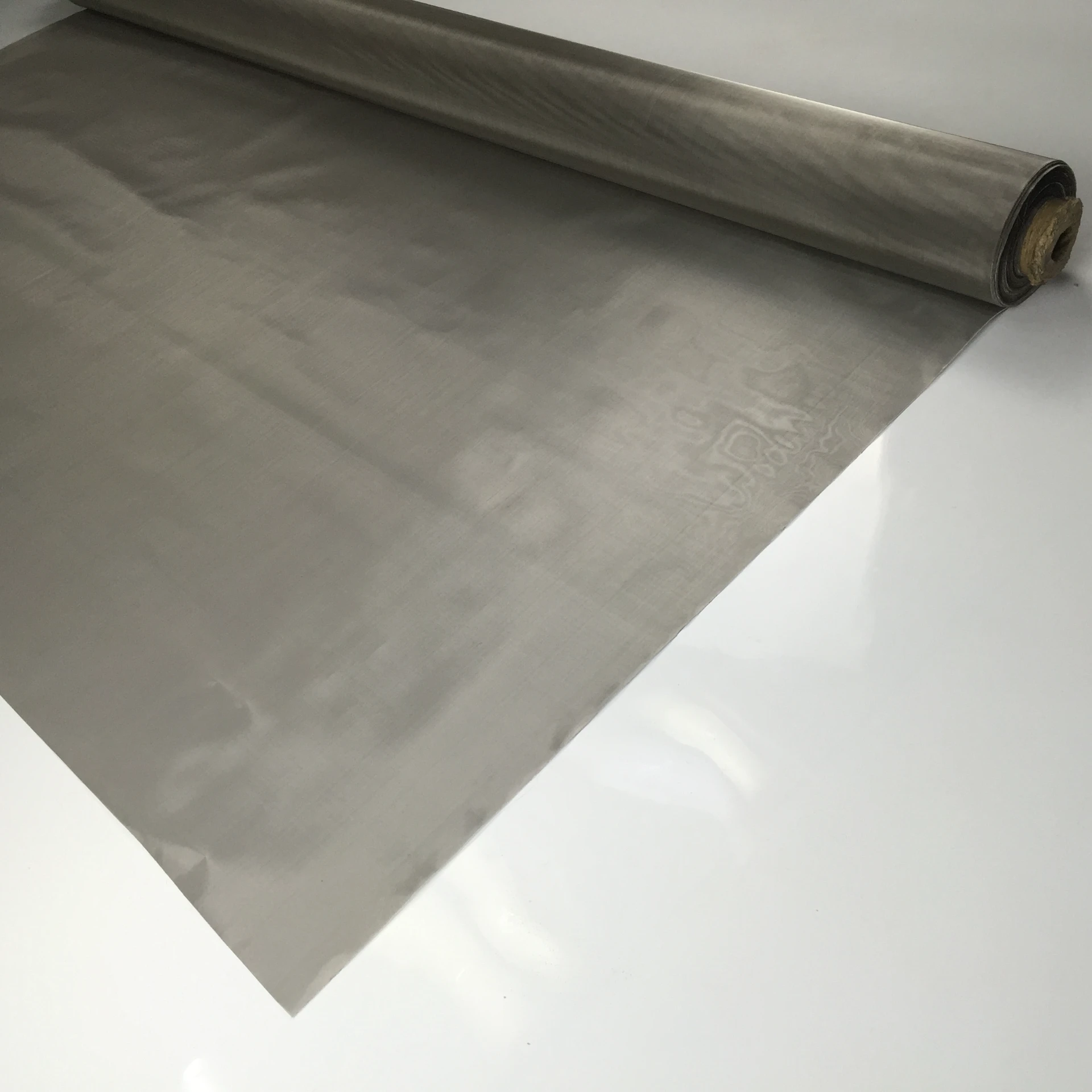

Nickel Wire Mesh

Required parameter Material: Nickel N2,N4,N6,N8. N2,N4 are popolar
Wire Diameter:
Mesh:
Plain weave can be woven from1 to 200 mesh.
Twill weave can be woven from 2 to 220 mesh.
Dutch weave can be woven up to 800 mesh
Weaving Method: plain/twill weave/plain dutch/twilldutch weave
Application: used in new energy power generation,petroleum,chemical, aerospace and other industries

Send Us an Email Download PDF

Product Detail

Product Tags

Product Introduction

Material	N2,N4,N6,N8. N2,N4 are popular
Mesh	Mesh:1-2300mesh Plain weave can be woven from1 to 200 mesh. Twill weave can be woven from 2 to 500 mesh. Dutch weave can be woven up to 2300 mesh
Weave method	plain/twill weave/plain dutch/twill dutch weave
Characteristic	1. Excellent acid and alkali resistance, corrosion resistance, heat resistance and wear resistance. 2.high electrical conductivity, thermal conductivity and ductility
Application	1. Screening and filtering under acid and alkali environment.used in mining, oil, chemical, food, pharmaceutical, machine and other fields 2. used in electronics and new energy power generation, aerospace and other industries

Packing

Individual rolls will be packed in sealed plastic bags, to ensure cleanliness and minimize moisture pick-up. Rolls will be packed inside wooden boxes with suitable packing to provide adequate protection against damage during handling and transportation. Each roll will be labeled indicating Lot number, Wire mesh size, quantity in square meters and will be accompanied with chemical analysis report by XRF.

Specification

Pure Nickel Mark	Ni+Co	Cu	Si	Mn	C	Mg	S	Fe	Impurities
	Min.	Max.
N2	99.98	.001	.003	.002	.005	.003	.001	.007	.02
N4	99.9	.015	.03	.002	.01	.01	.001	.04	.1
N6	99.5	.06	.10	.05	.10	.10	.005	.10	.5
N8	99.0	.15	.15	.20	.20	.10	.015	.30	1.0

Main Specification of Nickel Wire Mesh (Special Size can be custom made):

Mesh count	Wire diameter(mm)	Aperture(mm)	Max width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60
250	0.040	0.063	1.60
300	0.040	0.044	1.60
325	0.035	0.043	1.60
350	0.030	0.042	1.60
400	0.030	0.033	1.60
