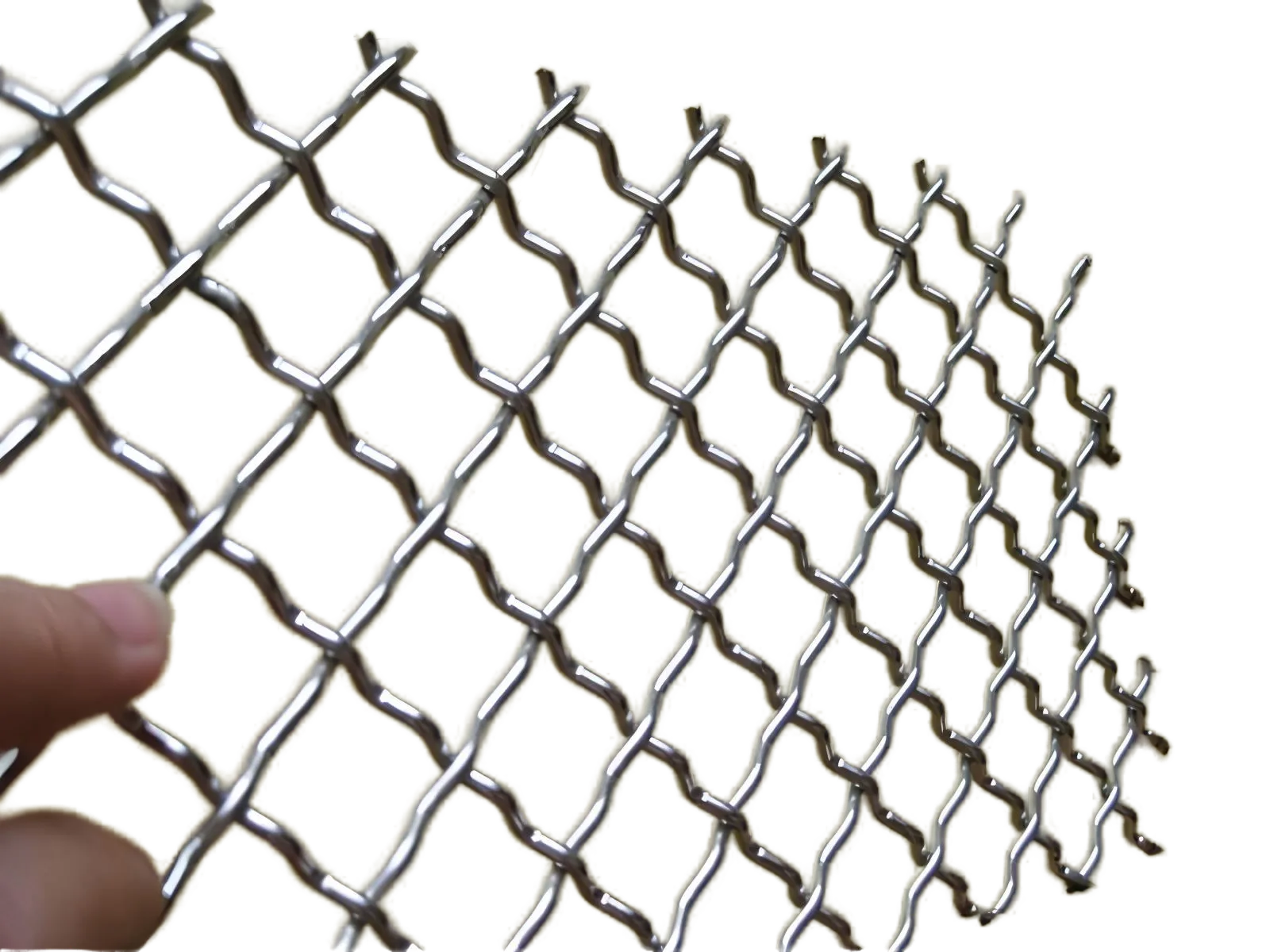

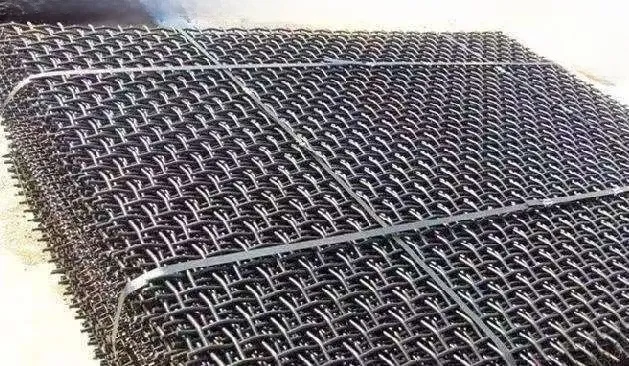

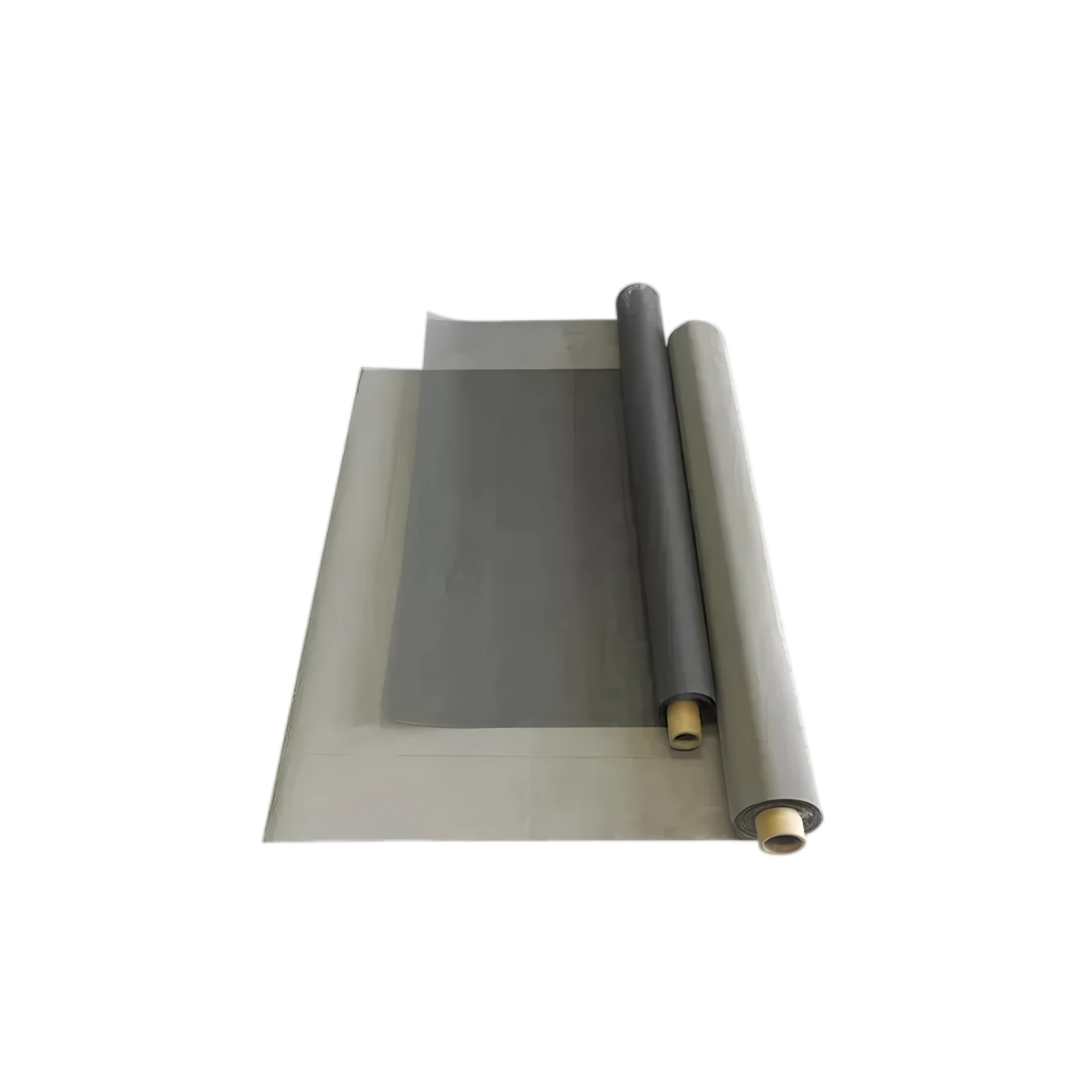

Titanium Wire Mesh
high oxygen evolution potential and good plasticity,Extremely high corrosion resistance ,good heat resistance, Biocompatibility
Widely used in electroplating, electrolysis, ion water electrolysis and other fields. used for screening and filtration under acid and alkaline environmental conditions or gas, liquid filtration and other medium separation;
the alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts;
In medical treatment, it can be used as artificial bones and various instruments.
Mesh | Wire Dia. | Hole size | ||
mm | inch | mm | inch | |
10 | 0.6 | 0.24 | 1.94 | 0.76 |
20 | 0.4 | 0.16 | 0.87 | 0.34 |
30 | 0.3 | 0.12 | 0.55 | 0.22 |
40 | 0.23 | 0.09 | 0.4 | 0.16 |
50 | 0.2 | 0.08 | 0.31 | 0.12 |
60 | 0.15 | 0.06 | 0.27 | 0.11 |
70 | 0.12 | 0.05 | 0.24 | 0.09 |
80 | 0.13 | 0.05 | 0.19 | 0.07 |
90 | 0.12 | 0.05 | 0.16 | 0.06 |
100 | 0.1 | 0.04 | 0.15 | 0.06 |
120 | 0.09 | 0.04 | 0.12 | 0.05 |
150 | 0.063 | 0.02 | 0.11 | 0.04 |
180 | 0.053 | 0.02 | 0.09 | 0.04 |
200 | 0.053 | 0.02 | 0.07 | 0.03 |
250 | 0.04 | 0.02 | 0.063 | 0.02 |
300 | 0.04 | 0.02 | 0.044 | 0.02 |
Special specification can be customized | ||||
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
